2 Week Lead Time (MET-251)

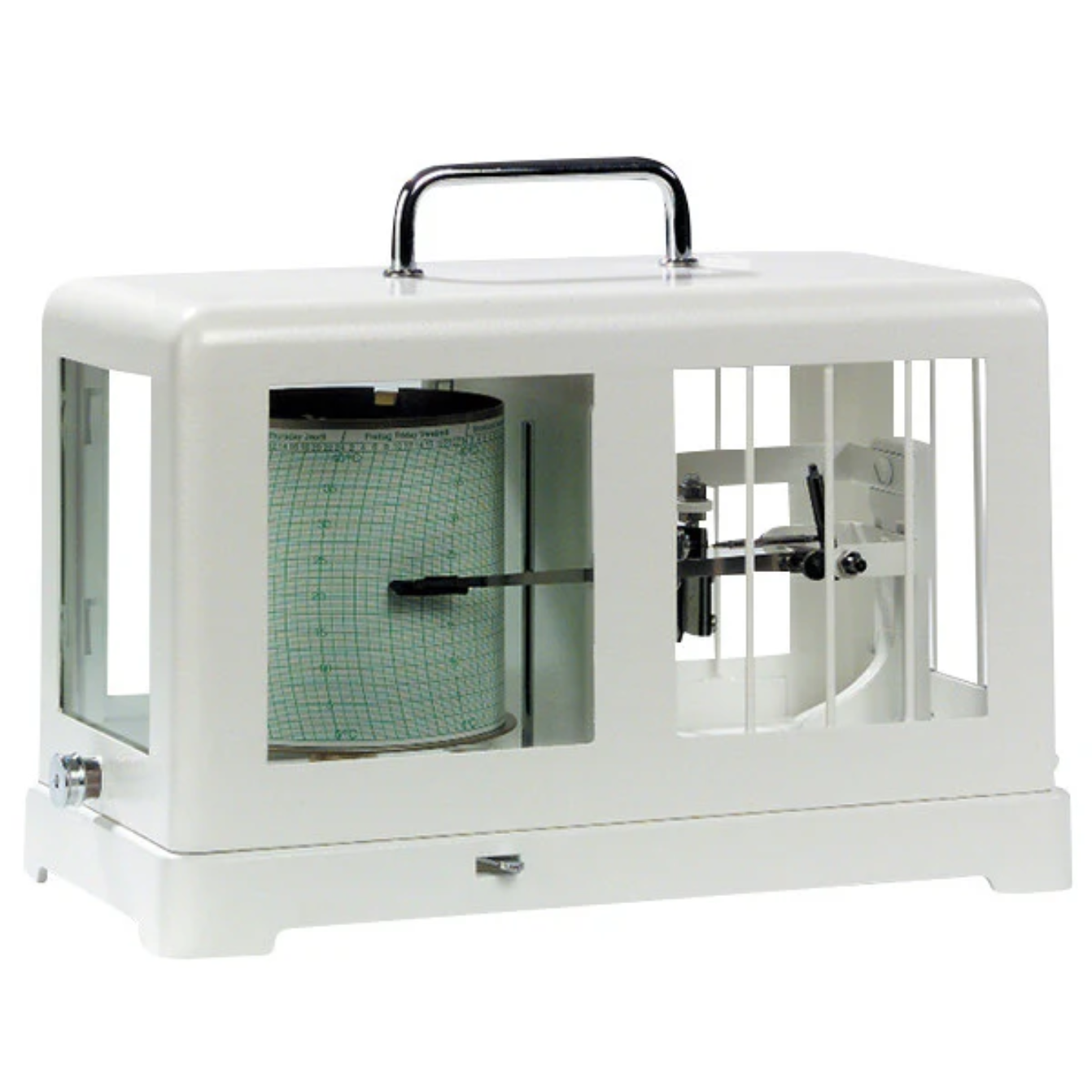

Manually manufactured, the MET-251 Thermograph is a traditional option for measuring and recording temperature.
The recording of temperature values via a thermograph is tamper proof and requires no connection to any existing system. The clock work drum is driven by a mechanical system acc. to DIN 58658 specifications.
These delicate mechanics are housed inside a robust metal housing making the 251 Thermograph suitable for floor, shelf or table top mounting.
|Measuring Element||High quality aged bimetal|
|Measurement Range||-35 - +45°C|
|Conditions Range||-40°C - +80°C|
|Housing Dimensions||280mm x 145mm x 180mm|
|RAL||9010 (clean white)|
