Maximum Merlin Wind Instrument


Colour of Case

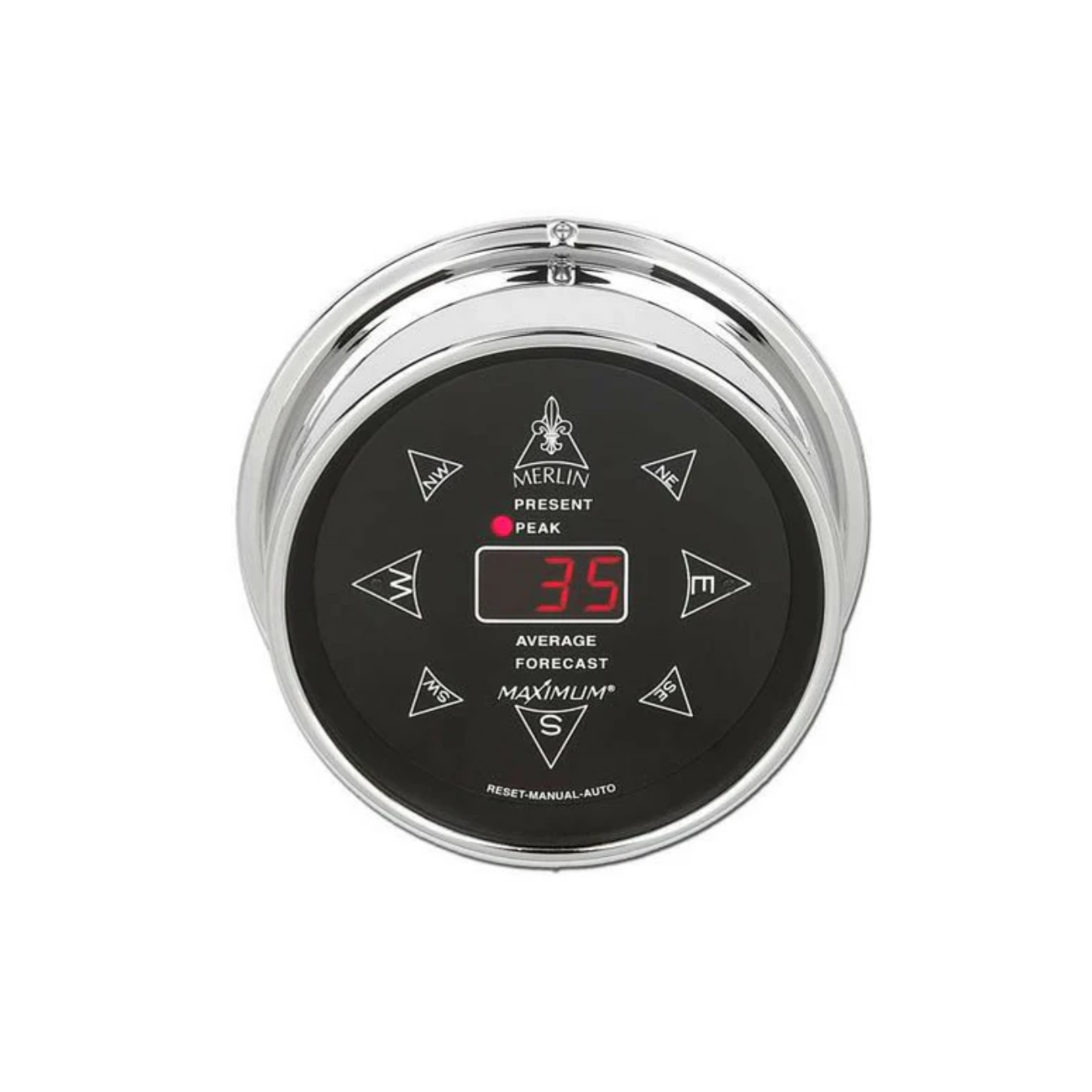

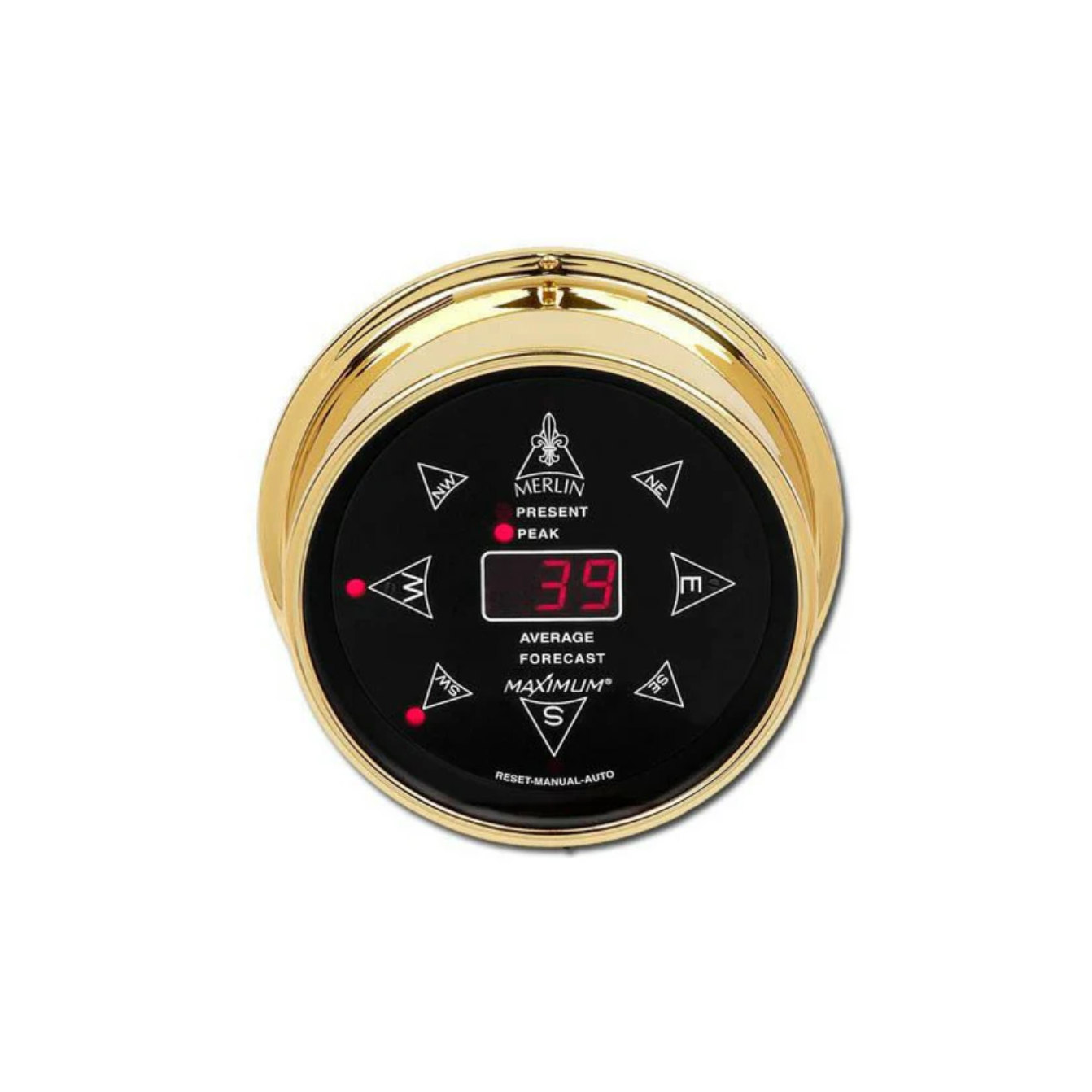

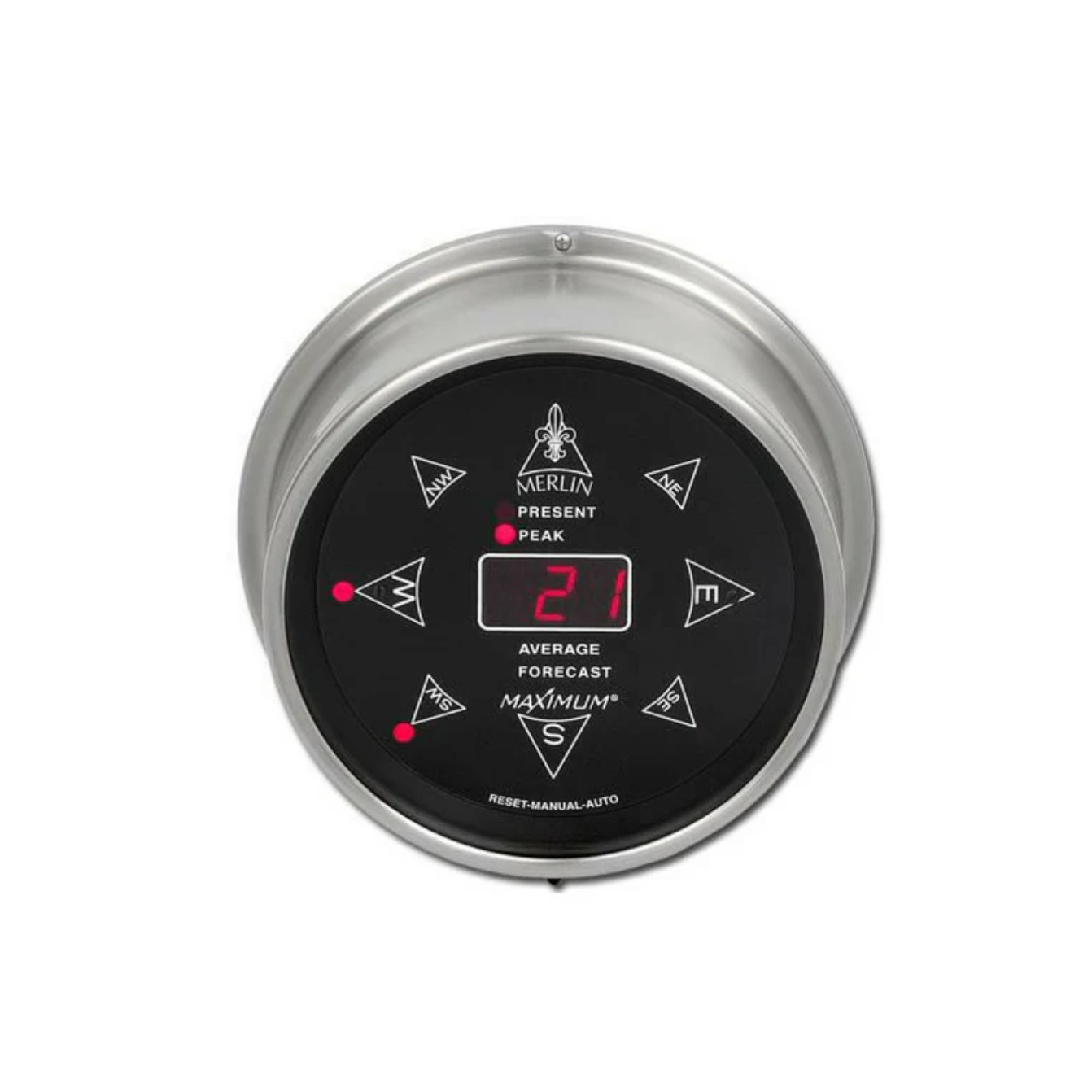

  • The Merlin Wind Speed Instrument records changes, trends and present wind conditions.

    Digital readings are given in four modes: 'Present' displays existing wind conditions; 'Peak' gives speed and direction of highest gust since last reset; 'Average' reveals average wind speed and direction since last reset; and 'Forecast' compares the most recent 12-minute average with the previous 12 minutes.

    The Merlin features user-selectable units of measurement for wind speed (mph, Knots, km/h or m/s). Wind direction is displayed via eight LEDs over a 16-point compass rose pattern.

    The Merlin can interface with The Mystic to compute wind chill readings. Memory data is protected by a 10-year internal back-up system.

    Choose the finish you would like for your Maximum dial when adding this item to basket. Please note, some variations have a lead time of 1 week. If this is the case, it will be indicated under the product title when selected.

    • Wind speed readings to 255 mph (410 km/h, 114 m/s, 221 Knots)
    • Wind direction displayed across 16-points (Compass Rose pattern)
    • Retains High Gust, Average conditions and 12-minute Forecast information until reset by user
    • 10-year data back-up
    • Solid brass case
  • Wind Speed Range 0 - 255 mph
    Wind Speed Accuracy +/-2% of Input & +/-1 Digit
    Wind Direction Range 16 Compass Points
    Wind Direction Accuracy Zero error; +/-11.25 degrees resolution
    Dial Dimensions 4.75" Diameter
    Case Dimensions 6.5" Diameter; 2.75" Deep
    Power Standard AC adaptor (included)
